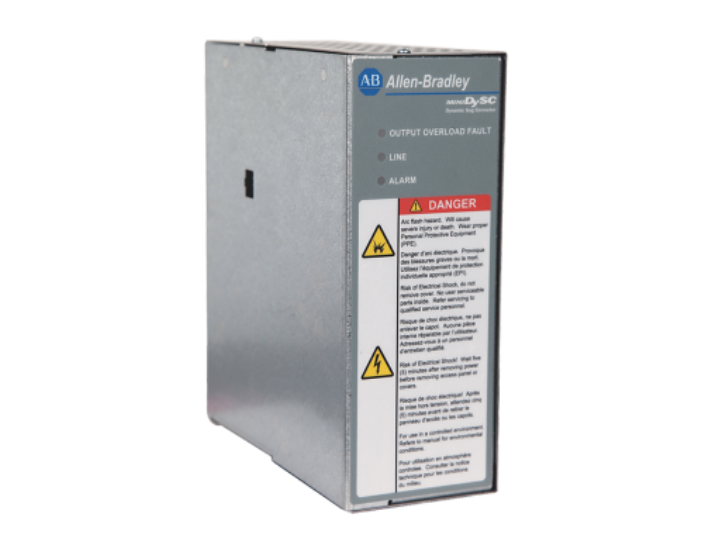

The Dynamic Voltage Sag Corrector (DySC) is a unique industrial power quality solution designed to prevent voltage sags and instantaneous power interruptions that can cause production line shutdowns and equipment damage. This dynamic voltage sag corrector operates without batteries, has no moving parts, and requires minimal maintenance, making it an ideal choice for critical processes and sensitive electronic instruments with up to 5-second ride-through protection. Furthermore, DySC is highly efficient, and the energy savings it provides can offset its purchase cost when compared to other power quality technologies.

Product Benefits

• Prevents Production Downtime
• Protects against short-term voltage sags and power interruptions that can impact production and damage equipment.
• Protects sensitive electronic instruments from both temporary and long-term damage caused by poor power quality, with expandable solutions.
• Comprehensive protection from machines to the entire plant.
• Includes single-phase and three-phase product combinations, with up to 5 seconds of ride-through time.
• Most power quality events are of short duration, and the DySC solution can protect equipment from the vast majority of such events, providing protection from 0 volts.
• Prevents brief total power loss with a battery-free solution.
• No need for battery replacement every 3-5 years, benefiting the environment.

Specifications

• Current Range: 1-50A
• Voltage Range: 120-240V
• Power Range: 0.25-14kVA
• Installation: DIN rail/Flat mount
• Phase: Single-phase
• Ride-Through Time: Up to 5 seconds
• Application: Control and component level
• Energy Efficiency: 96+%
• Enclosure: NEMA 1 (IP20)
• Temperature Rating: 0-40°C
